Panel P2.5 128x64 Hub75 ABC no display

1

Hello everyone,

I have four 128x64 P2.5 LED panels. I installed the rpi-rgb-led-matrix library. I tried numerous commands, but without success. I try with a pi 3 and pi 4.

My Hardware

A Raspberry Pi 4 with Pi OS Lite 64-bit.

RGB LED matrix panel driver board for Pi (ElectroDragon), model MPC1073

Power supply: Mean Well 5V LRS-350

Panels: 128x64 px

Driver IC: TC7958A

Model: P2.5 128x64 px 320x160mm

Connection: HUB75 type ABC

1/8 Scan

The problem is that I can’t display an image or text on the panel.

Command: sudo ~/rpi-rgb-led-matrix/utils/led-image-viewer --led-cols=128 --led-rows=64 --led-chain=1 --led-parallel=1 --led-gpio-mapping=regular --led-slowdown-gpio=4 --led-no-hardware-pulse --led-panel-type=FM6126A --led-row-addr-type=5 -f ~/box-1.png

for the test, i use one panel

It doesn’t show anything

Hello everyone,

I have four 128x64 P2.5 LED panels. I installed the rpi-rgb-led-matrix library. I tried numerous commands, but without success. I try with a pi 3 and pi 4.

My Hardware

A Raspberry Pi 4 with Pi OS Lite 64-bit.

RGB LED matrix panel driver board for Pi (ElectroDragon), model MPC1073

Power supply: Mean Well 5V LRS-350

Panels: 128x64 px

Driver IC: TC7958A

Model: P2.5 128x64 px 320x160mm

Connection: HUB75 type ABC

1/8 Scan

The problem is that I can’t display an image or text on the panel.

Command: sudo ~/rpi-rgb-led-matrix/utils/led-image-viewer --led-cols=128 --led-rows=64 --led-chain=1 --led-parallel=1 --led-gpio-mapping=regular --led-slowdown-gpio=4 --led-no-hardware-pulse --led-panel-type=FM6126A --led-row-addr-type=5 -f ~/box-1.png

for the test, i use one panel

It doesn’t show anything !

carte-rouge
carte-rouge1920×1440 144 KB

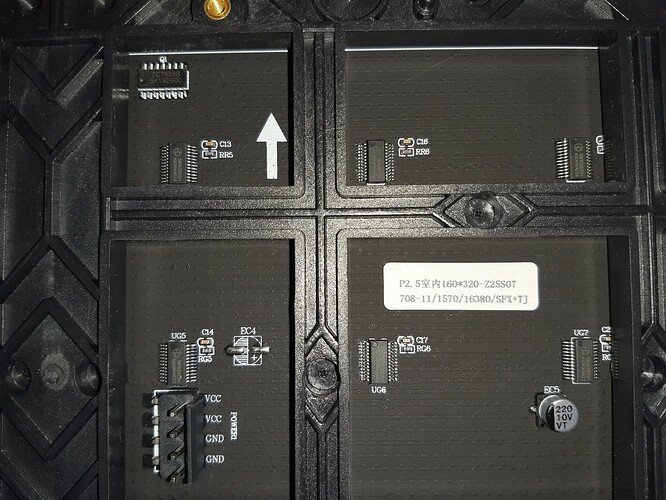

panneau2
panneau21920×1440 334 KB

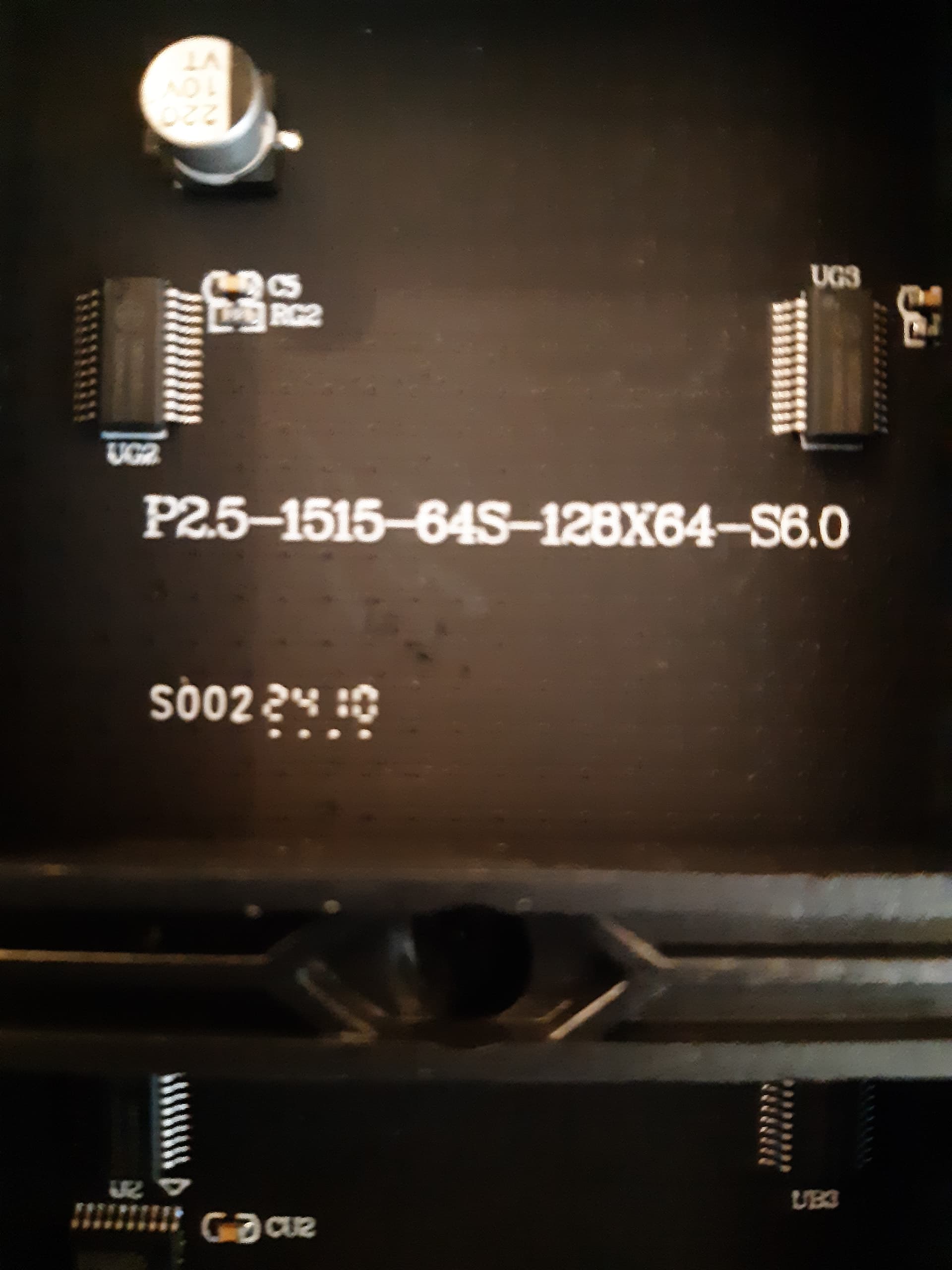

panneau
panneau1920×2560 176 KB

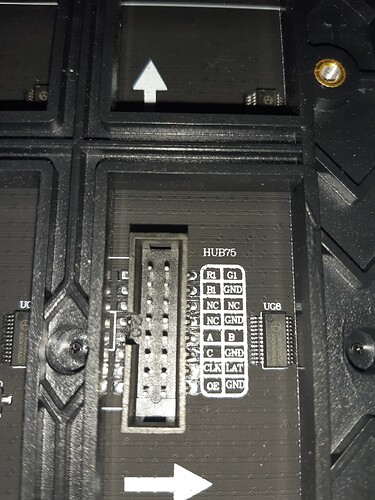

adress-panneau hub75
adress-panneau hub751920×2560 500 KB

2

According to your photos, the panel has a 64 scans (why did you decided that it 1/8 ?) and has a driver SM16380. This is a new PWM type driver that not supported by the library.
There is no workaround for this issue yet.

3

Hello,

thanks for the reply,

Is there a way to make them work with a raspberry pi ?

4

Only if you make a firmware yourself.

5

to be clear, PWM panels are entirely different in how they work compared to older row scan panels, which are the ones supported by this lib.

PWM panels are better, but they need a new library which has not been written and someone like you have to write it, or find and pay a competent software engineer to write and open source the driver

6

Hello,
Okay, I’ll wait for that.

7

If everyone waits, it will never happen.

8

to be clear, there are no plans of anyone writing this for free.

If you want it/need it, I recommend you find someone to contract to write and contribute it.
